    Camera, Detector

    SCMOS


    Prime BSI Scientific CMOS Camera




    Primary applications: TIRF Microscopy Ratiometric Imaging Cell Motility Light Sheet Microscop
    High Resolution BSI Scientific CMOS

    Prime BSI delivers the perfect balance between high resolution imaging and sensitivity because it uses an optimized pixel design with near perfect 95% Quantum Efficiency to maximize signal detection.This 4 Megapixel camera with 6.5μm pixels captures highly detailed images with great quality while acquiring data at high frame rates. This ensures that all data is collected and no event goes undetected.

    Prime BSI delivers a 100% pixel fill factor and does not rely on micro-lensing technology to increase detection, resulting in a 30% increase in sensitivity over previous sCMOS cameras.


    IRIS 9 Scientific CMOS Camera




    Primary applications: Light Sheet Microscopy Multi-Color Fluorescence High Content Screening Tiling Applications
    Large Field of View Scientific CMOS

    Iris 9 Scientific CMOS camera is designed to deliver extremely high-resolution images for live cell microscopy applications. Iris 9 delivers a 9 Megapixel sensor with a 17.8mm field of view ensuring it can maximize the number of cells captured in a single frame. The 4.25μm pixels provide highly detailed images across the imaging plane and allow for Nyquist spatial sampling at 40X magnification. The camera can capture dynamic cellular events at 30 frames per second for the full frame, and at thousands of frames per second with regions.

    The Iris 9 has a high quantum efficiency and low noise levels to maximize dim signal detection and allowing for the use of shorter exposure times to minimize cellular photo-damage.


    IRIS 15 Scientific CMOS Camera

    IRIS 15 Scientific CMOS Camera



    Primary applications: Light Sheet Microscopy Multi-Color Fluorescence High Content Screening Tiling Applications r
    White Light for Transmitted illumination on any Microscope

    The Iris 15 Scientific CMOS camera is designed with a large field of view for live cell microscopy applications. Its 15 megapixel sensor and 25 millimeter field of view provides extremely high-resolution images over a large imaging area. It is the only camera that provides high resolution with video rate acquisition speeds, ensuring dynamic cellular events are properly captured and documented.

    Capture detailed 15 MP images using the 25mm microscope field-of-view at over 30 frames per second (fps). Iris 15 offers a 4.25µm x 4.25µm pixel area which meets the requirements for Nyquist spatial sampling at 40 times magnification, as well as high sensitivity with a 73 percent quantum efficiency and low noise levels.

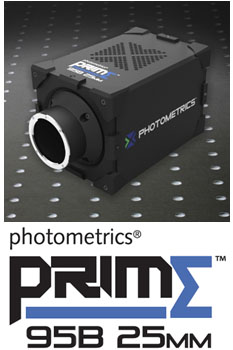

    Prime 95B™ 25mm Scientific CMOS Camera




    Large Field of View BSI Scientific CMOS

    The Prime 95B 25mm delivers an extremely large imaging area and combines this with the near-perfect sensitivity of a Backside Illuminated (BSI) Scientific CMOS sensor. The Prime 95B 25mm sensor converts up to 95% of incident photons into measurable signal, and provides an unmatched 25mm field of view. The Prime 95B 25mm is optimally positioned to maximize detection and imaging throughput when mounted on the Nikon ECLIPSE Ti2 microscope. The extreme sensitivity not only allows fainter signals to be detected, it provides the flexibility to increase frame rates, or turn down the excitation intensity to reduce cellular photo-damage. The Prime 95B 25mm improves the field of view and maintains the high frame rates and extremely low read noise that has made sCMOS so popular for live-cell imaging.



    95% Quantum Efficiency
    25mm Field of View (1608 x 1608)
    1.6e- Read Noise (median)
    30fps @ 16-bit

    PrimeEnhance™ quantitatively increases the Signal to Noise Ratio by 3X-5X, increasing the clarity and quality of images.
    PrimeLocate™ dynamically evaluates acquired images and reduces the surplus of data generated during high speed super-resolution imaging.

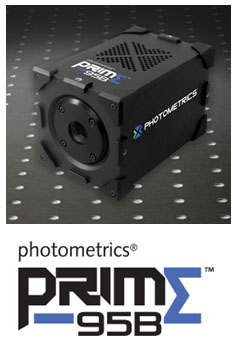

    Prime 95B™ Scientific CMOS Camera



    Prime 95B™ Scientific CMOS Camera

    When discovery depends on every photon,

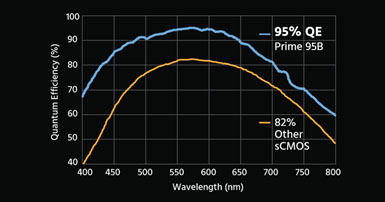

    The Prime 95B Scientific CMOS camera offers the highest level of sensitivity. Designed with backside illumination, see how its 95% QE provides near perfect detection

    95% Quantum Efficiency
    11µm x 11µm Pixel Area
    1200 x 1200 array - 1.44 Megapixel
    1.6e- Read Noise
    80,000e- Pixel Full Well
    61,500:1 Dynamic Range
    41fps @ 16-bit
    82fps @ 12-bit

    PrimeEnhance™ quantitatively increases the Signal to Noise Ratio by 3X-5X, increasing the clarity and quality of images.
    PrimeLocate™ dynamically evaluates acquired images and reduces the surplus of data generated during high speed super-resolution imaging.

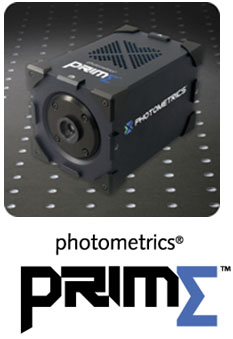

    Prime sCMOS Camera





    4.2 Megapixel Scientific CMOS Camera
    Winner of multiple industry awards, Photometrics Prime is the first intelligent scientific CMOS (sCMOS) camera to incorporate a powerful FPGA-based Embedded Signal Processing™ engine (ESP). ESP enables advanced real-time processing features:


    PrimeEnhance™ quantitatively increases the Signal to Noise Ratio by 3X-5X, increasing the clarity and quality of images.
    PrimeLocate™ dynamically evaluates acquired images and reduces the surplus of data generated during high speed super-resolution imaging.

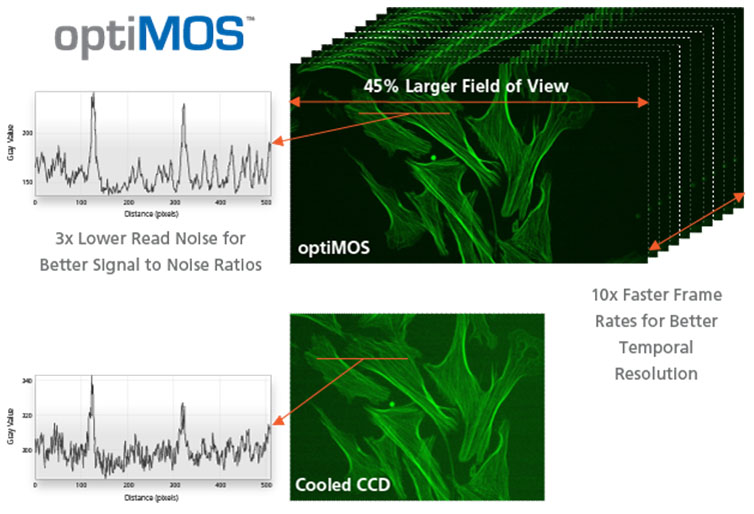

    optiMOS
    Award Winning optiMOS™ sCMOS Camera
    100 fps sCMOS camera optimized for high speed fluorescence microscopy

    ROI SPEED TABLE

    Region of Interest

    Frame Rates

    1920 x 1080

    100fps

    1920 x 512

    220fps

    512 x 512 220fps

    1920 x 128

    850fps

    128 x 128

    850fps

    1920 x 64

    1630fps

    64 x 64

    1630fps
